What is Wide Area Multilateration (WAM)?

What is Wide Area Multilateration (WAM)?
January 20, 2015 Kai Frolic

Wide Area Multilateration – usually shortened to WAM – is a surveillance system for monitoring aircraft.

Presently, surveillance of aircraft is usually achieved by means of radar. Air navigation service providers are interested in deploying alternatives to radar for various economic and technical reasons. WAM is one alternative.

How it Works

WAM makes use of a signal that is broadcast by the transponder of an aircraft. The signal is picked up by a number of receivers on the ground.

Based on the time difference between the arrival of the signal at each receiver, the position of the aircraft can be calculated. The figure below illustrates the setup.

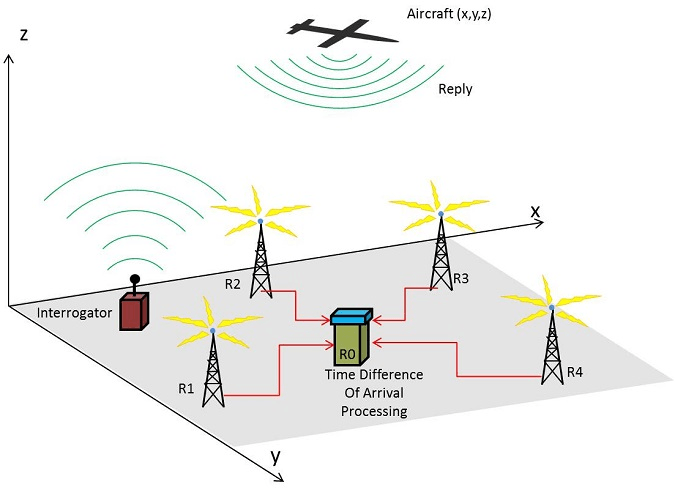

Diagram of how Wide Area Multilateration WAM works

Requirements

A WAM system requires:

  • A number of antennae on the ground that receive the signal
  • A central processing station
  • An aircraft that is fitted with a transponder

In order to calculate the position of the aircraft in 3D directly, the signal must be received by at least four antennae. It is also possible to estimate the position using just three antennae if target altitude is available from another source (such as Mode C).

Advantages

Particular features of WAM that make it an advantageous are:

  • WAM makes use of existing transmissions – can be deployed without any changes to airborne infrastructure
  • It is much less expensive than radar
  • The system can be deployed in mountainous regions that are difficult to cover with radar

Disadvantages / Limitations

Issues with WAM that may make it less suitable than other surveillance systems include:

  • The aircraft must be within the 2D area of the ground antennae for a high accuracy result
  • The system will not detect aircraft without a transponder
  • There are technical limitations associated with receiver characteristics

Implementation of WAM

Eurocontrol have produced documents regarding the approvals process for WAM, which is extensive. The diagram below is based on one provided by Eurocontrol (Reference 2).

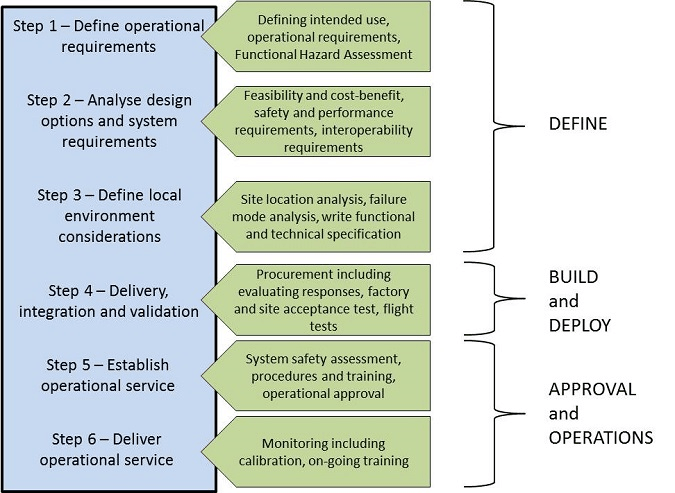

Outline of Eurocontrol Wide Area Multilateration (WAM) approval process

Use

Examples of operational WAM systems include:

  • Four airports in Colorado, USA
  • Juneau in Alaska, USA

These systems have facilitated increased arrivals per hour and decreased separation distances between aircraft.

Outlook

WAM is a proven surveillance solution that can be of great value to airports. WAM is not a perfect system and has limitations like any other surveillance equipment. It is a cooperative system and is therefore not suitable for all types of aircraft.

WAM is able to solve particular problems, for example coverage in mountainous areas, and could potentially be a good complement to other surveillance systems.

References

  1. W.H.L. Neven et al, 2005, Wide Area Multilateration Report on EATMP TRS 131/04, Eurocontrol
  2. WAM Generic Guidance Process – Volume 1 Process Description, 2009, Eurocontrol
  3. Wide Area Multilateration, 2014, Federal Aviation Authority

7 Comments

  1. Mmbulaheni Mashanyu 9 years ago

    Brilliant and useful information. Easily explained. I wanted to undertand the cost breakdown of installing a WAM broken down by component e.g. receiver and interrogator and CPS etc

  2. Author
    Kai Frolic 9 years ago

    Hi Mmbulaheni, thank you for your comment.

    Naturally the cost breakdown is dependent on many factors, including coverage volume requirement and accessibility of the receiver locations.

    A Eurocontrol publication from 2005 gave indicative system costs of €400k for a central processor, €50k-€150k per remote unit and €50k for a reference transponder. Their conclusion was that the hardware costs of a WAM system are very roughly half of the costs of an SSR system.

    As you may expect, the actual cost will be very case-specific.

  3. Sangar Kareem Murad 7 years ago

    Form where can I get offer for installing WAM system because now I am looking for professional company to buy WAM system for Sulaimaniyah International Airport in Kurdistan Region- Iraq

    • admin 7 years ago

      Hi there. Thales http://www.thalesgroup.com provide WAM systems and have recently been awarded a contract to install WAM systems in Afghanistan. We hope that helps.

  4. Jonathan Lewis 6 years ago

    When was WAM first invented and by whom?

  5. Havalbaban 6 years ago

    What are the intended uses of a system which seems redundant with ABS-B/GNSS/SSR? Are aircraft in the world already using WAM?

    • admin 6 years ago

      WAM systems can solve some problems that an SSR system (for example) would have, including coverage in mountainous regions. There are other considerations such as maintenance requirements, there are no moving parts in a WAM system.

      Many airports do use WAM, there are pros and cons to such a system.
