Defining Glint and Glare

Defining Glint and Glare
October 29, 2014 Kai Frolic

The two terms ‘glint’ and ‘glare’ refer to the unwanted reflection of the sun’s rays by the face of a reflective surface. The terms are defined below, based on definitions given by the Federal Aviation Authority (FAA) [1] in the USA among other publications.

Glint from a solar panelGlint captured on solar photovoltaic panels.

Glint is a momentary flash of light. “This may be produced as a direct reflection of the sun in the solar panel” [2].  Glint could be experienced by an observer passing a solar panel at speed, such as a motorist.

What is Glint and Glare?

Glint effects are not restricted to just solar panels and can occur from any reflective surface including building facades.

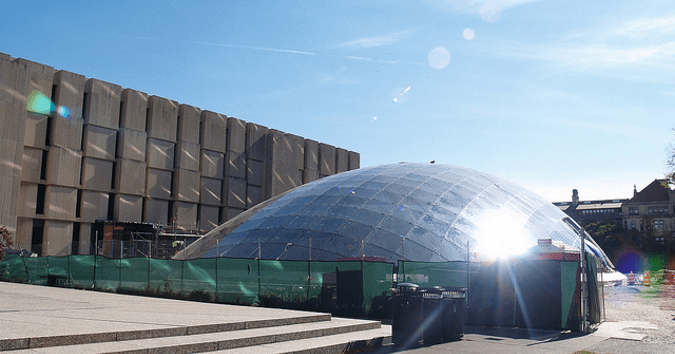

Glint occuring on a buildingGlint from a glass building.

Glare is a continuous source of excessive brightness.  It could be experienced by a stationary observer located in the path of reflected sunlight from the face of the panel.

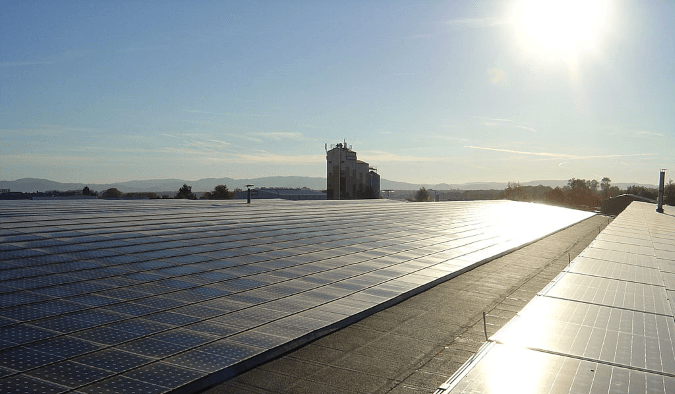

Solar Glare on Solar PanelsGlare captured on solar photovoltaic panels.

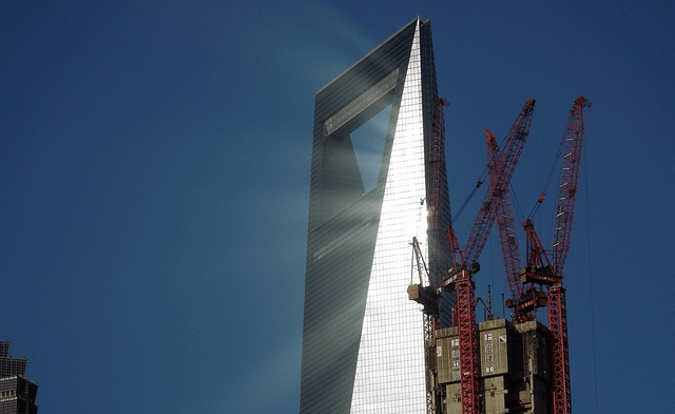

Glare can also be an issue for buildings with reflective/ glassy facades. This was recently demonstrated by the Walkie Talkie building in London. Solar glare from the Shanghai World Financial Centre has been captured in the image below.

Glare from Shanghai World Financial CenterGlare from a building.

Effects

Glint and glare can cause a distraction or lead to an after-image being experienced by an observer. This can present a nuisance and, under some circumstances, a safety hazard. This is why solar developments can receive objections due to potential impacts caused by glint and glare.

Assessing Impact

Many solar developments in the UK now require a Glint and Glare assessment in order satisfy the Local Planning Authority or key stakeholders such as the Ministry of Defence (MOD) or nearby airports.

Early assessment of the potential issues and relevant mitigation measures can ensure that projects are not held up or derailed at the planning stage.

From £1195 - Comprehensive Glint and Glare Assessments are available from Pager Power
Pager Power's Solar Glint and Glare Modelling Tool now takes into account the visible horizon and sun azimuth range

References

[1] “Technical Guidance for Evaluating Selected Solar Technologies on Airports” – Federal Aviation Administration

[2] “Planning guidance for the development of large scale ground mounted solar PV systems” – BRE

Image accreditations: First Array” by Russ Ferriday / CCBY 2.0 / Resized from original.

Mansueto Library” by Barb / CCBY 2.0 / Cropped and resized from original.

Sonnenfleck 1” by Micha Jost / CCBY 3.0 / via WikiMedia / Cropped and resized from original.

The Bottle Opener” by Lori Branham / CCBY 2.0 / Cropped and resized from original.
